FRAME MOUNT SPRING SOLO SEAT MOUNT KIT [0820-0048]

MOUNT SPSOLO 04-6/10-19XL
  • 0820-0048

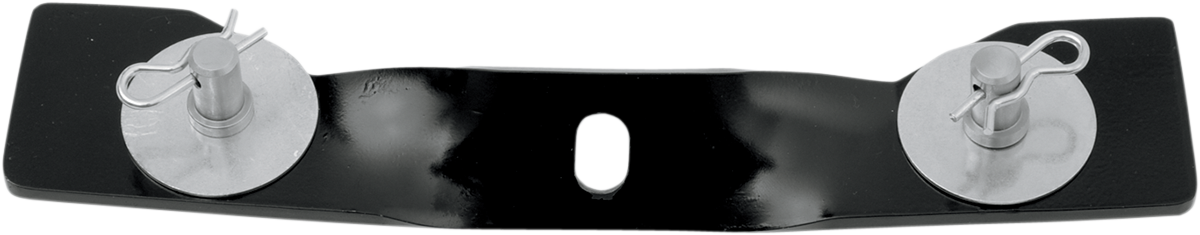

  • Front
  • Bottom
  • Application Shot
  • Application Shot
  • Application Shot
  • Application Shot
  • Application Shot
  • Application Shot
Part # Description Sug. Retail Price
0820-0048 Frame mount spring solo seat mount kit $145.95

Overview

  • Designed for installing Drag Specialties large and small spring solo seats
  • Includes spring mount bracket with 3” chrome springs, seat bracket, leather frame cover and instructions
  • Mount is black powder-coated, steel spring mount studs are stainless steel and all other hardware is zinc-coated
  • Scissor-type springs PART #0820-0041 can also be used with this kit and are sold separately
  • Height is determined based on spring style
  • Seats sold separately
  • Made in the U.S.A.

Will fit 07-09 XL models if ECM is relocated from fender and seat area. This kit does not provide relocation instructions or materials.

The large Drag Specialties Solo seat will not fit on XL models with 4.5 gallon fuel tank.

Specifications

Base Color:Black
Base Finish:Powder-Coated
Color/Finish:Black
Material:
  • Leather
  • Stainless Steel
Mounting Position:Front
Product Name:Spring and Mount Kit
Riding Style:Street
Units:Kit

Application(s)

Year Make Model
2006Harley-Davidson1200 Low EFI XLL
2011 - 2017Harley-Davidson1200 XLCP
2004 - 2006Harley-DavidsonXL1200C Sportster 1200 Custom
2010 - 2019Harley-DavidsonXL1200C Sportster 1200 Custom
2016 - 2020Harley-DavidsonXL1200CX Roadster
2006Harley-DavidsonXL1200L Sportster 1200 Low
2010 - 2011Harley-DavidsonXL1200L Sportster 1200 Low
2010 - 2012Harley-DavidsonXL1200N Sportster 1200 Nightster
2018 - 2021Harley-DavidsonXL1200NS Iron 1200
2004 - 2006Harley-DavidsonXL1200R Sportster 1200 Roadster
2014 - 2017Harley-DavidsonXL1200T SuperLow 1200T
2012 - 2016Harley-DavidsonXL1200V Seventy-Two
2010 - 2022Harley-DavidsonXL1200X Forty-Eight
2018 - 2019Harley-DavidsonXL1200XS Forty-Eight Special
2004 - 2006Harley-DavidsonXL883 Sportster
2004 - 2006Harley-DavidsonXL883C Sportster 883 Custom
2005 - 2006Harley-DavidsonXL883L Sportster 883 Low
2010Harley-DavidsonXL883L Sportster 883 Low
2011 - 2019Harley-DavidsonXL883L SuperLow
2010 - 2022Harley-DavidsonXL883N Iron 883
2005 - 2006Harley-DavidsonXL883R Sportster 883 Roadster
