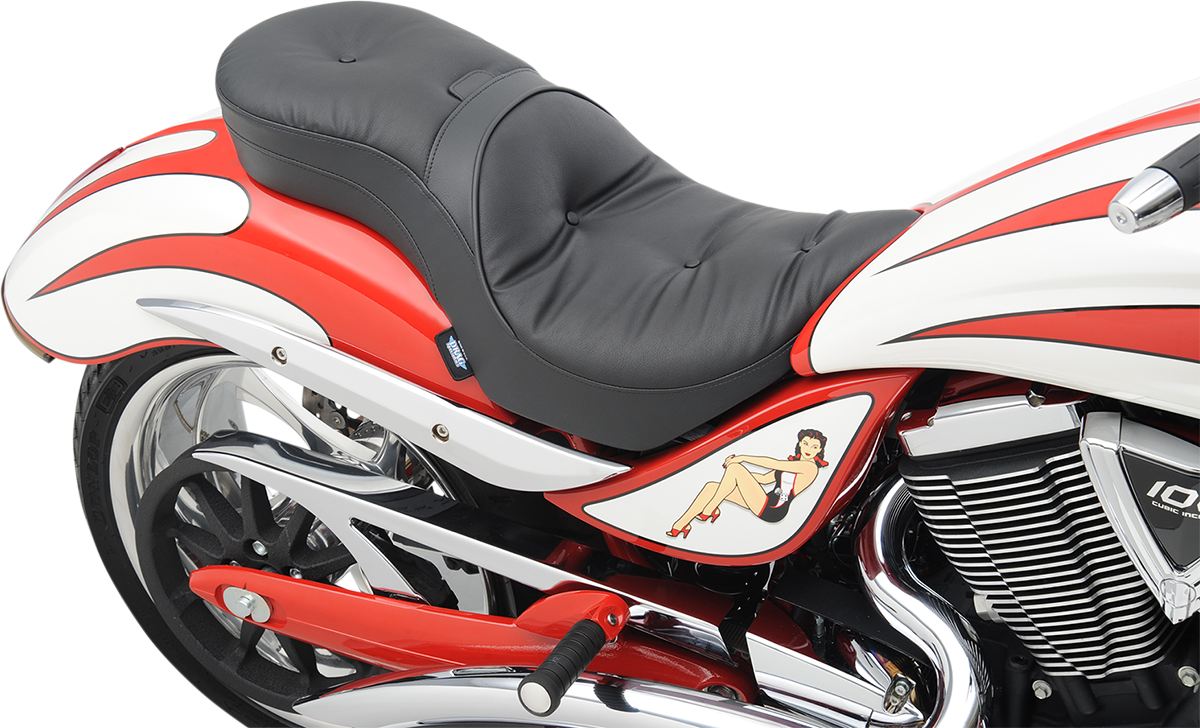

LOW PROFILE TOURING SEATS WITH EZ GLIDE II™ BACKREST OPTION [0810-1577]
| Part # |
Description |
Sug. Retail Price |
| 0810-1577 |
Pillow-style, vinyl |
$627.95 |
Overview
- Solar-reflective leather in the seating area and automotive-grade vinyl on the sides; patented process reduces surface temperature by as much as 25°F for a cooler seat, higher durability and longer life over conventional leather or vinyl
- Molded polyurethane foam for maximum comfort and styling
- 3/16” ABS thermoformed seat base for a perfect fit, with a
carpeted bottom and rubber bumpers to protect paint
- Lower position creates better rider position with improved styling
- Seats can be used with or without driver backrest
- Seats accept optional EZ Glide II™ backrests, sold separately
- Include mounting hardware
- Made in the U.S.A.

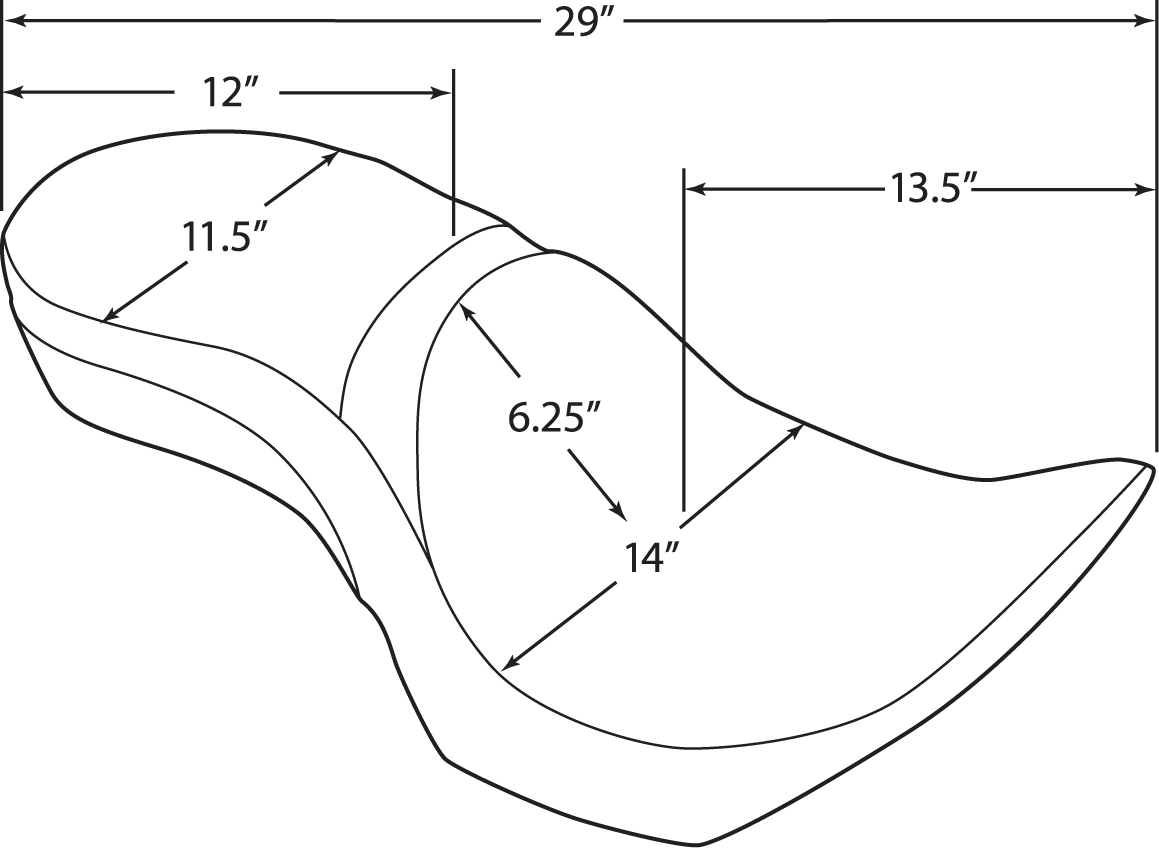

Specifications
| Backrest Pad Width Imperial: | 11" |
| Base Color: | Black |
| Cover Material: | Vinyl |
| Decoration: | Pillow |
| Driver Seat Length Imperial: | 15-1/2" |
| Driver Seat Width Imperial: | 14" |
| Fill Material: | Polyurethane Foam |
| Mounting Position: | Rear |
| Overall Seat Length Imperial: | 27" |
| Passenger Seat Length Imperial: | 10" |
| Passenger Seat Width Imperial: | 11" |
| Product Name: | Seat |
| Riding Style: | Street |
| Type: | 2-Up Seat |
| Units: | Each |
Application(s)
| Year |
Make |
Model |
|
| 2006 - 2008 | Victory | Arlen Ness Jackpot | |
| 2009 - 2010 | Victory | Cory Ness Jackpot | |
| 2011 - 2015 | Victory | Jackpot | |
Catalogs Containing This Part
| Name |
Page Number |
| 12 Drag Seat Virtual Catalog | N/A |
