SOLO SEATS WITH EZ GLIDE II BACKREST OPTION [0802-0636]

PILLION WD SMTH 00-05FXST
  • 0802-0636
  • Information

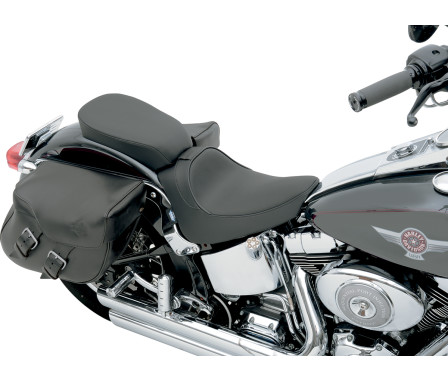

  • Application Shot
  • Application Shot
Part # Description Sug. Retail Price
0802-0636 Wide smooth $233.95

Overview

  • Solar-reflective leather in the seating area and automotive-grade vinyl on the sides; patented process reduces surface temperature by as much as 25°F for a cooler seat, higher durability and longer life over conventional leather or vinyl
  • Molded polyurethane foam for maximum comfort and styling
  • 3/16" ABS thermoformed seat base for a perfect fit; with a carpeted bottom and rubber bumpers to protect paint
  • Lower rider 1-1/2" from stock seat
  • Optional backrests feature solar-reflective leather cover and multiple detents with virtually no metal-to-metal contact for vertical and fore/aft pad adjustment
  • Optional Rear solo seats are also available; sol separately
  • Made in the U.S.A.

FLST models may require a hole drilled in fender to properly mount

FLSTSB models will require removal of the OEM spring solo mount brackets and frame cover.

Seats for 84-99 models do not have rubber bumpers

Specifications

Base Color:Black
Decoration:Smooth
Features:Low Profile
Fill Material:Polyurethane Foam
Material:
  • Leather
  • Vinyl
Model:Wide
Mounting Position:Rear
Overall Seat Length Imperial:10-3/4"
Passenger Seat Length Imperial:10-3/4"
Passenger Seat Width Imperial:9"
Product Name:Pillion Pad
Riding Style:Street
Type:Passenger
Units:Each

Application(s)

Year Make Model
2005Harley-Davidson15th Anniversary Fat Boy FLSTF
2006Harley-DavidsonFLST Heritage Softail
2000 - 2006Harley-DavidsonFLSTF Fat Boy
2001 - 2006Harley-DavidsonFLSTFI Fat Boy
2006Harley-DavidsonFLSTI Heritage Softail
2000 - 2003Harley-DavidsonFLSTS Heritage Springer
2001 - 2003Harley-DavidsonFLSTSI Heritage Springer
2000 - 2005Harley-DavidsonFXST Softail Standard
2000 - 2005Harley-DavidsonFXSTB Night Train
2001 - 2005Harley-DavidsonFXSTBI Night Train
2001 - 2005Harley-DavidsonFXSTI Softail Standard
2000 - 2005Harley-DavidsonFXSTS Springer Softail
2001 - 2005Harley-DavidsonFXSTSI Springer Softail
