LARGE TOURING SEATS THAT ACCEPT FRAME MOUNTED BACKRESTS [0801-0832]

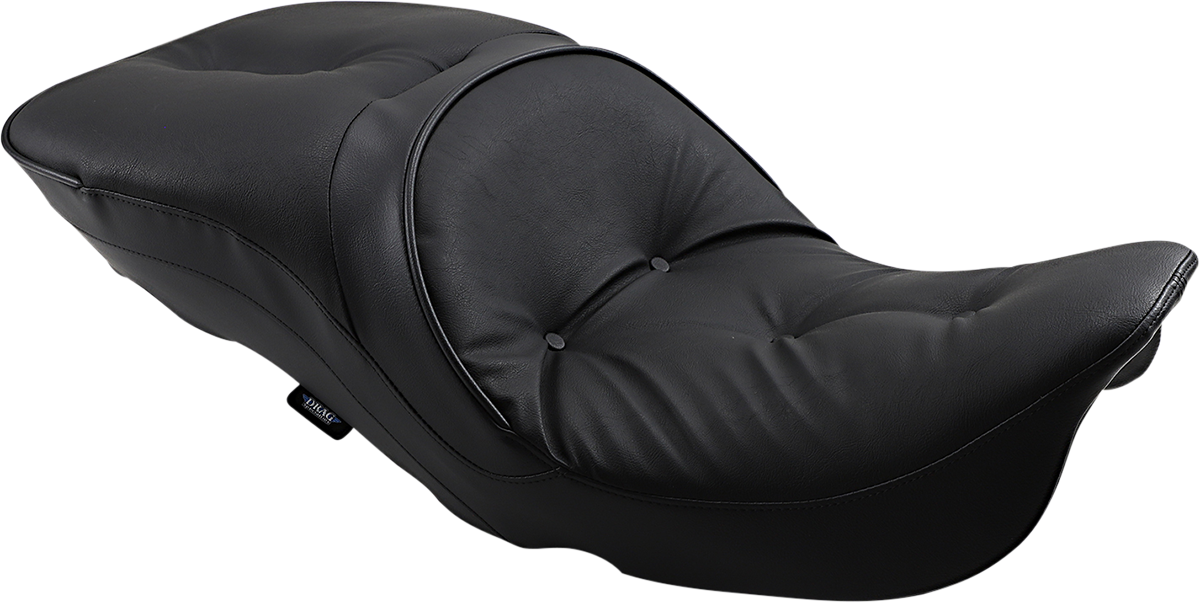

SEAT LG TOUR PLW FL 97-07
  • 0801-0832
  • Information
  • Application Shot
Part # Description Sug. Retail Price
0801-0832 Pillow-style $595.95

Overview

  • Solar-reflective leather in the seating area and automotivegrade vinyl on the sides; patented process reduces surface temperature by as much as 25° F for a cooler seat, higher durability and longer life over conventional leather or vinyl
  • The driver area is cut narrow in the front and is approximately 1” lower than the stock seat
  • Molded flexible urethane foam interior for maximum comfort
  • 3/16” ABS thermoformed base for a perfect fit; carpeted bottom with rubber bumpers to protect paint
  • Use with frame-mounted mechanism, Part #0822-0163
  • Accept driver backrest (sold separately)
  • Also work with H-D® OEM frame mounted mechanism and backrest pad
  • Includes all mounting hardware
  • Made in the U.S.A.

Specifications

Base Color:Black
Cover Material:
  • Leather
  • Vinyl
Decoration:Pillow
Driver Seat Length:39,5 cm (15-1/2")
Driver Seat Length Imperial:15-1/2"
Driver Seat Length Metric:39.5 cm
Driver Seat Width Imperial:15"
Fill Material:Polyurethane Foam
Model:Touring
Mounting Position:Front
Overall Seat Length:80 cm (31-1/2")
Overall Seat Length Imperial:31-1/2"
Overall Seat Length Metric:80 cm
Passenger Seat Length:33 cm (13")
Passenger Seat Length Imperial:13"
Passenger Seat Length Metric:33 cm
Passenger Seat Width:38 cm (15")
Passenger Seat Width Imperial:15"
Passenger Seat Width Metric:38 cm
Product Name:Seat
Riding Style:Street
Type:2-Up Seat
Units:Each

Catalogs Containing This Part

Name Page Number
12 Drag Seat Virtual CatalogN/A
